2025 OEM Waterproof Smart Pet Cat Dog Finder Breakaway GPS Tracker Collar Wifi Tracking Device Pet Loss Prevention Pet Locator
10~499/piece
$20.56
500~1999/piece
$20.17
2000~2999/piece
$19.69
≥3000/piece
$18.92
Quick Details
Product Code：
V41
OEM：
Refuse
Sample:
Available
Payment:
PayPal,VISA,MasterCard,D/P,Other
Place of Origin：
China
Shipping：
Support Express · Sea freight · Land freight · Air freight
Supply Ability：
20000 piece per week
Quick Details
Shipping fee
Shipping fee
2025 OEM Waterproof Smart Pet Cat Dog Finder Breakaway GPS Tracker Collar Wifi Tracking Device Pet Loss Prevention Pet Locator
Our Service
|
◇ Host specifications
|
Details
|
|
|
◇ Chip platform
|
ASR3603S
|
|
|
◇ Support network frequency
|
GSM \ WCDMA \ FDD-LTE \ FDD-TDD
|
|
|
◇ Frequency bands
|
Model A： 4G-FDD：Band 1/2/3/5/7/8/20 3G-WCDMA：Band 1/2/5/8 2G-GSM：Band 2/3/5/8
|
|
|
Model B:
4G-FDD：Band 1/2/4/5/7/12/13/17 3G-WCDMA：Band 1/2/5 2G-GSM：Band 2/5 |
||
|
◇ Standby mode
|
Single-card of Nano SIM
|
|
|
◇ Receive diversity
|
Supports
|
|
|
◇Positioning functions
|
Description
|
|
|
GPS
|
* GPS
|
Supports
|
|
Chip module:
|
Main chip internal integrated
|
|
|
GPS signal：
|
L1,1575.42MHz C/A code
|
|
|
GPS channel number：
|
22 channels
|
|
|
GPS chip scale receiving sensitivity
|
Trace：-165dBm, Capture：-148dBm
|
|
|
GPS accuracy
|
5-15m
|
|
|
GPS Antenna
|
Ceramic antenna
|
|
|
* AGPS
|
Supports
|
|
|
AGPS fast position time：
|
Cold boot within 26 sec to locate
|
|
|
LBS
|
LBS position
|
Supports
|
|
LBS accuracy
|
100-1000M (base on Amap database)
|
|
|
WIFI
|
WiFi position
|
Supports
|
|
WiFi chip module
|
In built
|
|
|
WiFi Standard
|
802.11b\802.11g\802.11n
|
|
|
WiFi accuracy
|
5-50M(base on Amap database)
|
|
|
◇ Special features
|
Description
|
|
|
Ultra-low power consumption
|
Supports
|
|
|

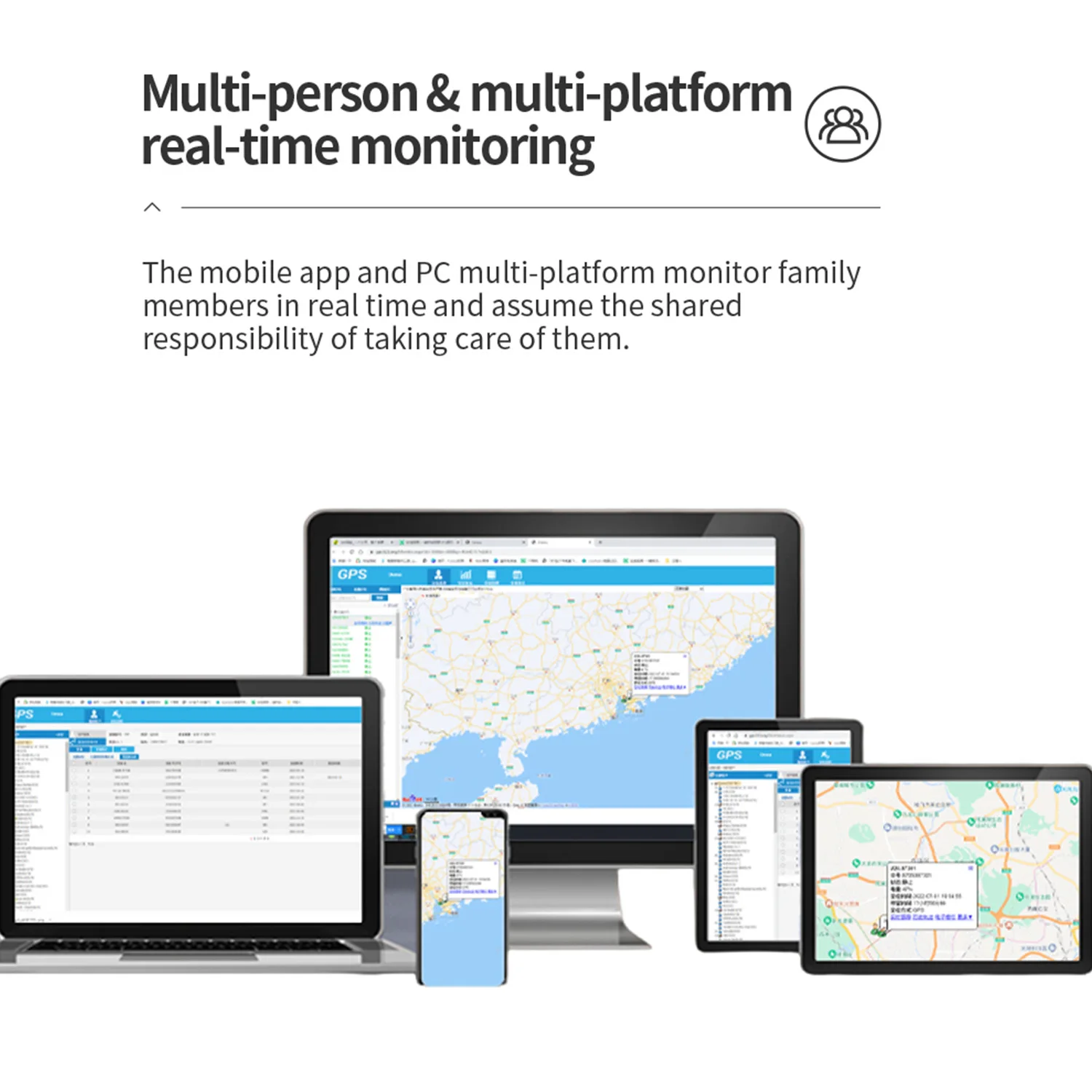

Location check on the Internet
|
By App or web platform in PC and smart phone
|
|
|
Historical route check
|
Supports
|
|
|
Phone calls
|
Supports
|
|
|
SMS text commands
|
Supports
|
|
|
In-built battery
|
Supports
|
|
|
Blind spot supplement upload
|
Supports
|
|
|
Position drift processing
|
Supports
|
|
|
Lithium battery charging circuit
|
Supports
|
|
|
Lithium battery charging protection
|
Supports
|
|
|
Remote voice monitoring
|
Supports
|
|
|
Charging boot
|
Supports
|
|
|
Audio
|
Supports
|
|
|
Button
|
3 keys: SOS key*1, speed dail key*2
|
|
|
◇Parameters
|
Description
|
|
|

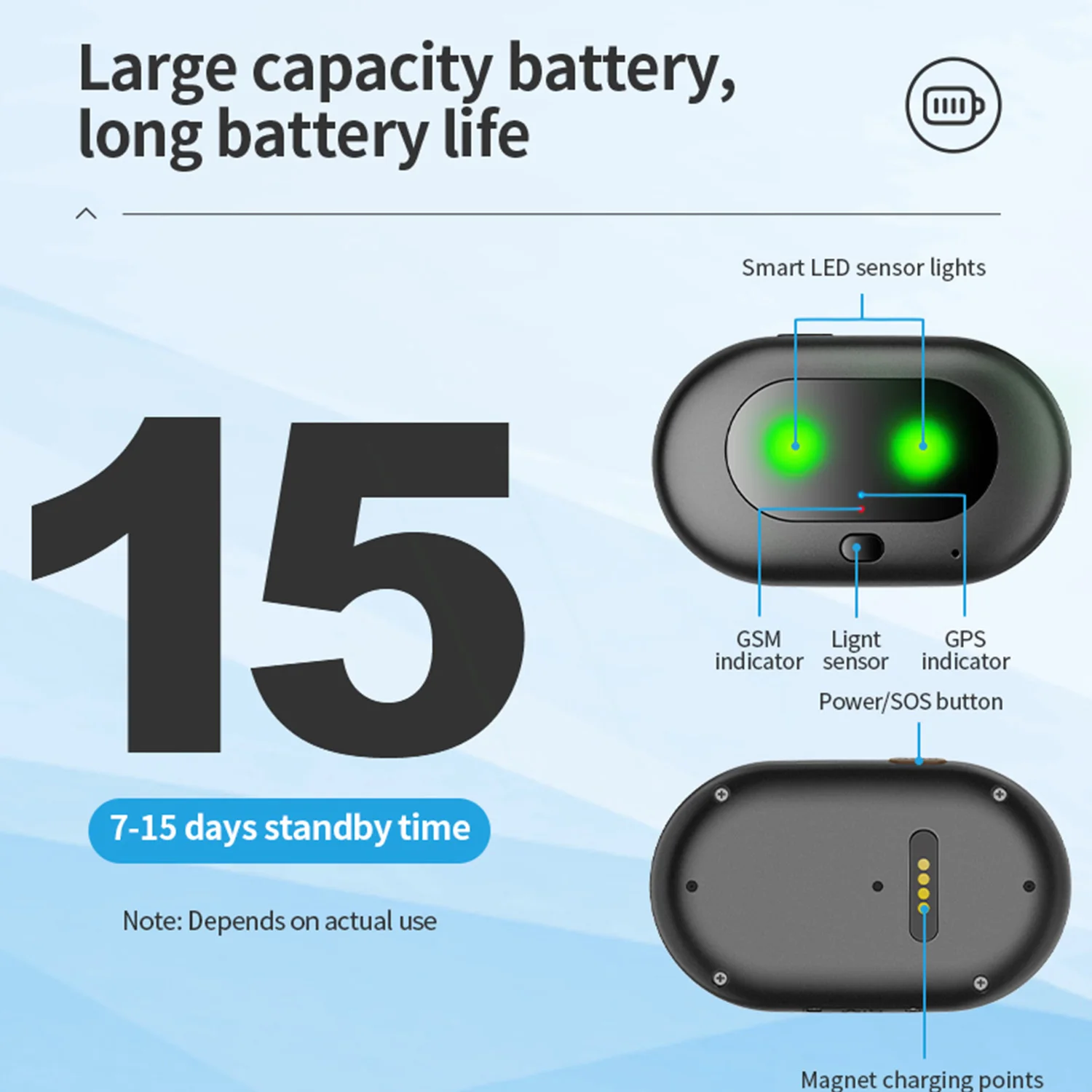

Battery
|
1000mAh
|
|
|
Average standby current
|
4mA/h
|
|
|
Average working current
|
8mA/h (upload position within every 10minutes）
|
|
|
Working Temps
|
-20～70℃
|
|
|
Working Humidity
|
5% to 95% nonsolidifying
|
|
|

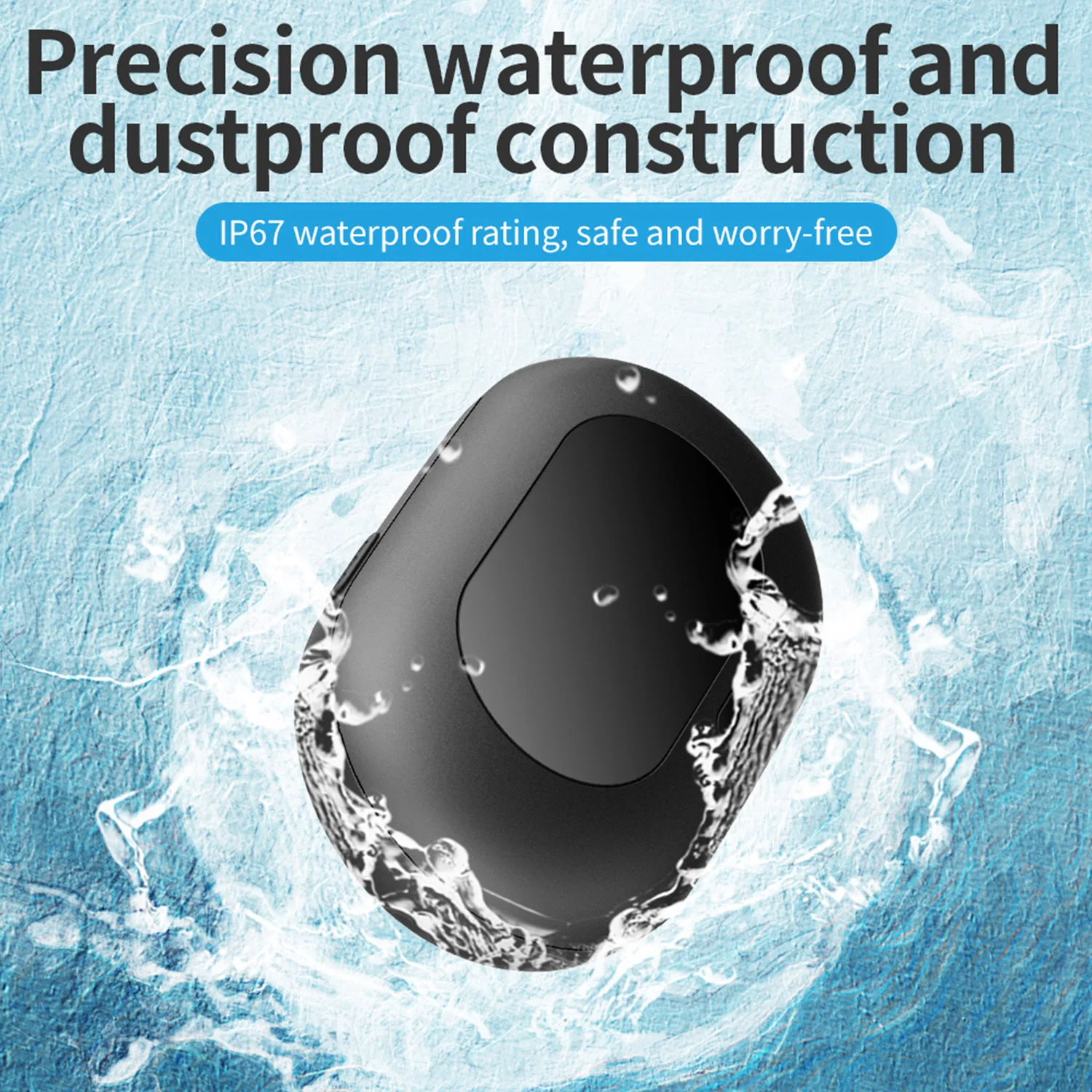

Waterproof
|
Support IP67
|
|
|
◇ Appearance
|
Description
|
|
|
◇ Product modeling
|
Pendant type GPS Tracking device
|
|
|

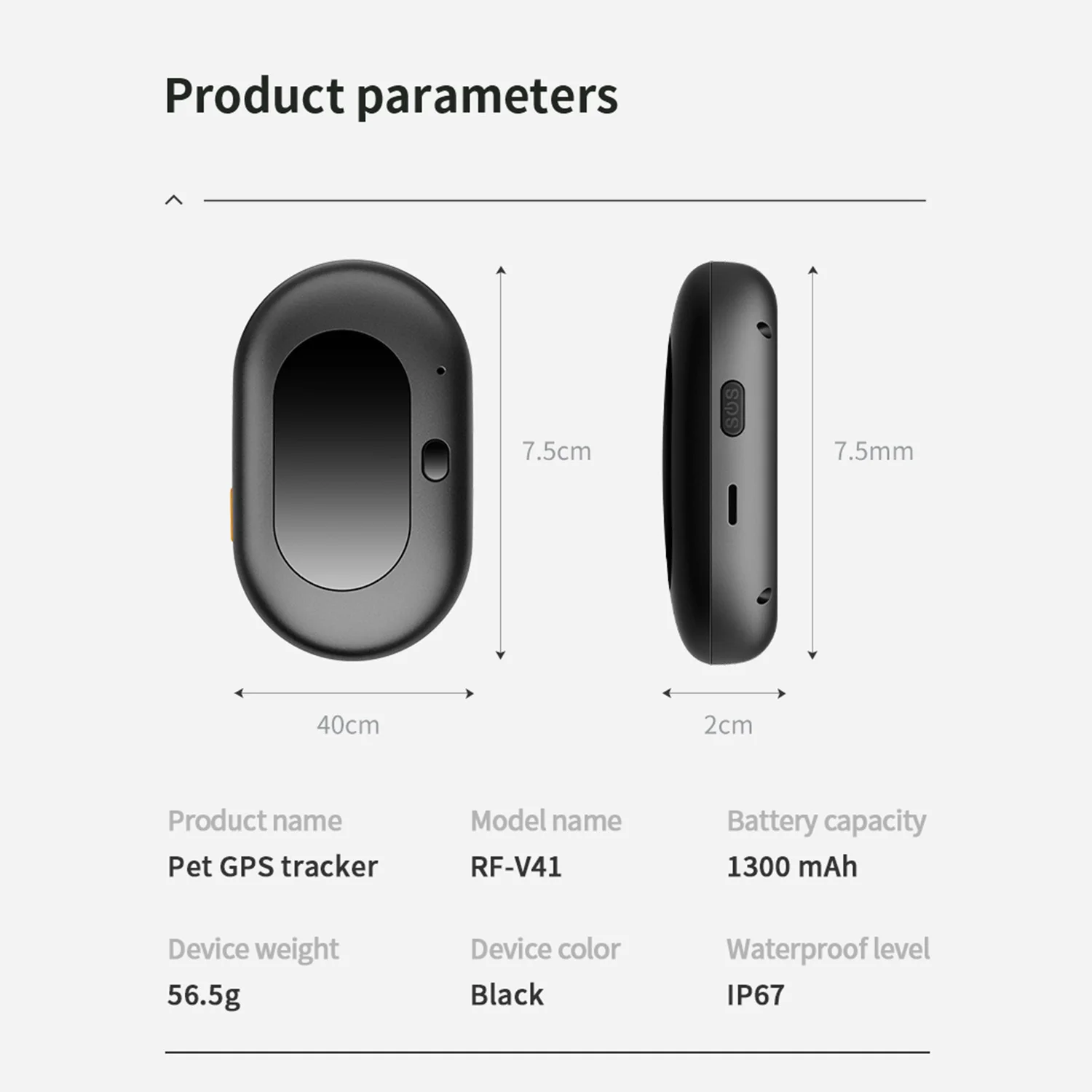

◇ physical dimension
|
57.5*40*16.5mm
|
|
|
◇ Weight
|
45g
|
|
|
◇ Color options
|
Black
|
|
|

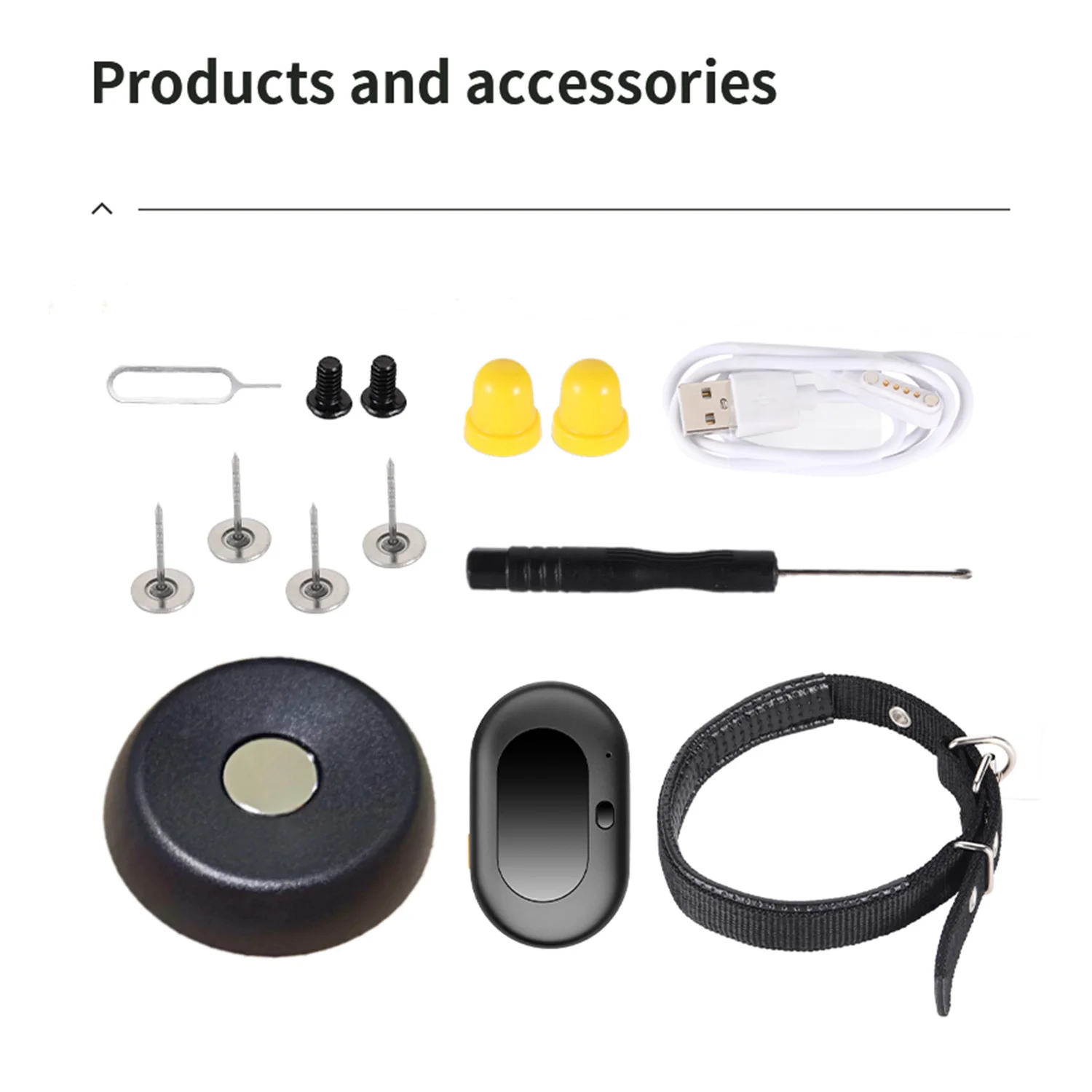

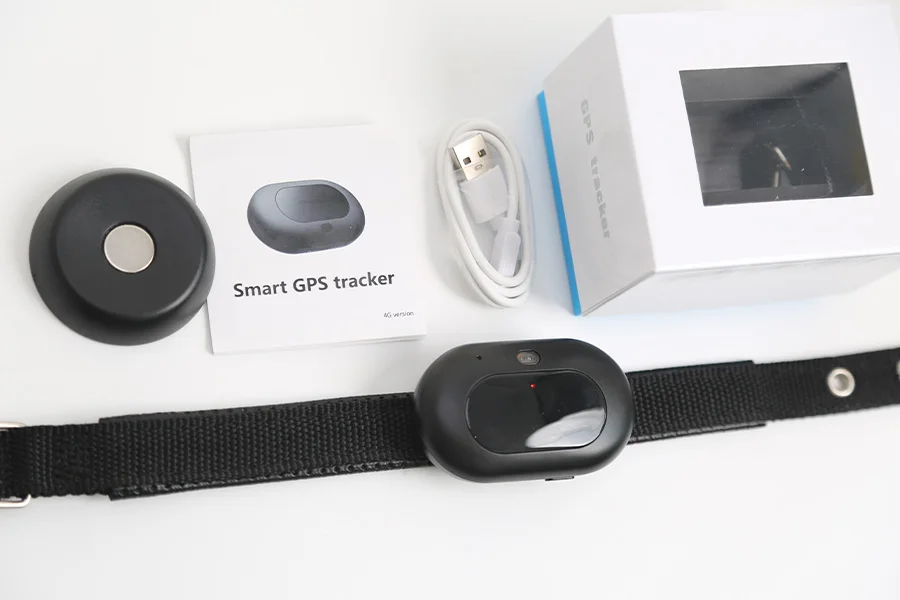

◇ Packaging accessories
|
Description
|
|
|
◇ Host
|
Available
|
|
|
◇ User manual
|
Available
|
|
|
◇ Screws and scres driver
|
Available
|
|
|
◇ USB cable\type
|
Magnet USB cable
|
|
|
◇ Package type
|
Box with top and bottom lid
|
|
|
◇App and software
|
Description
|
|
|
◇ UI Style
|
Squared Up
|
|
|
◇Software functions
|
Real time tracking
|
check location, adjust location uploading intervals and navigate to the personnel
|
|
Historical route
|
Check each single day's location in the latest 90 days.
|
|
|
Geo-fence
|
1.GPS fence: Compare GPS locations and judge it gets in or out of the fence.
2.WIFI fence：Compare WIFI locations and judge it gets in or out of the fence. |
|
|
Health
|
Calculate the amount of personnel activity, calorie consumption and exercise journey.
|
|
|
Talk
|
1.SOS 2 way voice call.
2.Voice monitoring: Request the tracker to call the SOS number for voice monitoring. |
|
|
Settings
|
To set settings of the GPS Bracelet. For example：
1.SOS number setting 2.Phonebook: enter the number of the call 3.Falldown alert 4.Alarm clock reminder 5.Ringtone seek the tracker 6.Refuse unfamiliar incoming call etc. |
|
|
Alarm list
|
To display all alerts triggered by the tracker, including offline, low battery and fence in and out ones.
|
|
|
Remind setting
|
Turn on all options to get alert notifications. Please turn on the smart phone's App permission for notifications.
|
|
Product description
Delivery
1.By Express(DHL,UPS,Fedex,TNT): around 3-5 working days delivery.
2.By Sea: around 4 weeks delivery.
3.By your forwarder arrangement.
2.By Sea: around 4 weeks delivery.
3.By your forwarder arrangement.
Payment & Transportation
1, What’s your focus on?
Answer：we focus on safety and health device, we can give a great solution for the quality of life to a lot of people, they will be monitored by medics and if they had an emergency they will have a better opportunity in life.
2, What are your positioning methods?
Answer：We have GPS, WiFi, LBS, BT positioning, match appropriate positioning solutions according to different usage requirements.
3, In what fields are your products mainly used?
Answer：Our current main service scope: elderly people living alone in social welfare, nursing homes, hospitals, prisons, schools, gas stations and other fields.
4, How do you achieve project docking?
Answer：We have a very mature technical team, you can use our server, or we can help connect your server, we have a protocol to implement the connection, and we currently support TCP/IP.
5, How can I add SOS number? How many numbers can I add on device?
Answer：Setting by SMS or sever, normally there are 3 SOS numbers, we can also customize and increase more numbers as required.
6, Can we do some functional customization on the device?
Answer：Sure, For example, increase infrared body temperature, customize different languages and voice broadcasts to the watch, customize the switch logo, etc.
7, Can i visit your factory?
Answer：Sure, welcome anytime, we also participate in the Hong Kong Fair and Canton Fair every year, welcome to visit our booth to experience our new products aslo.
